Get moving with one of these propulsion options! We offer Honda Marine gas outboards, ePropulsion electric outboards, and Minn Kota trolling motors in a variety of configurations. The 10 Series is rated for up to 10HP in a tiller steering configuration. The 12 Series is rated for up to 20HP and the 14 Series is rated for up to 40HP in either tiller or remote steer configurations. All models are light enough for trolling motor-only propulsion.
Minn Kota Endura Max
-
If the Endura™ name looks familiar, it's because you've seen it on thousands of transoms over the years. The most popular trolling motor on the water is built to explore, built to last, and trusted to reliably, consistently drive you to the fish.
-
Lever Lock Bracket: This solid 10-position bracket features a quick-release lever lock and reinforced composite material that resists flexing, warping, and UV damage.
Telescoping Tiller: Get easy, comfortable, intuitive operation of your trolling motor with the six-inch telescoping tiller.
5 Fwd/3 Rev Speed Settings: Five speed settings for forward and three speed settings for reverse.
Power Prop: For 3-1/4" motor diameters, this prop delivers extra power to push through heavy vegetation. Includes prop pin, nut and washer.
Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
-

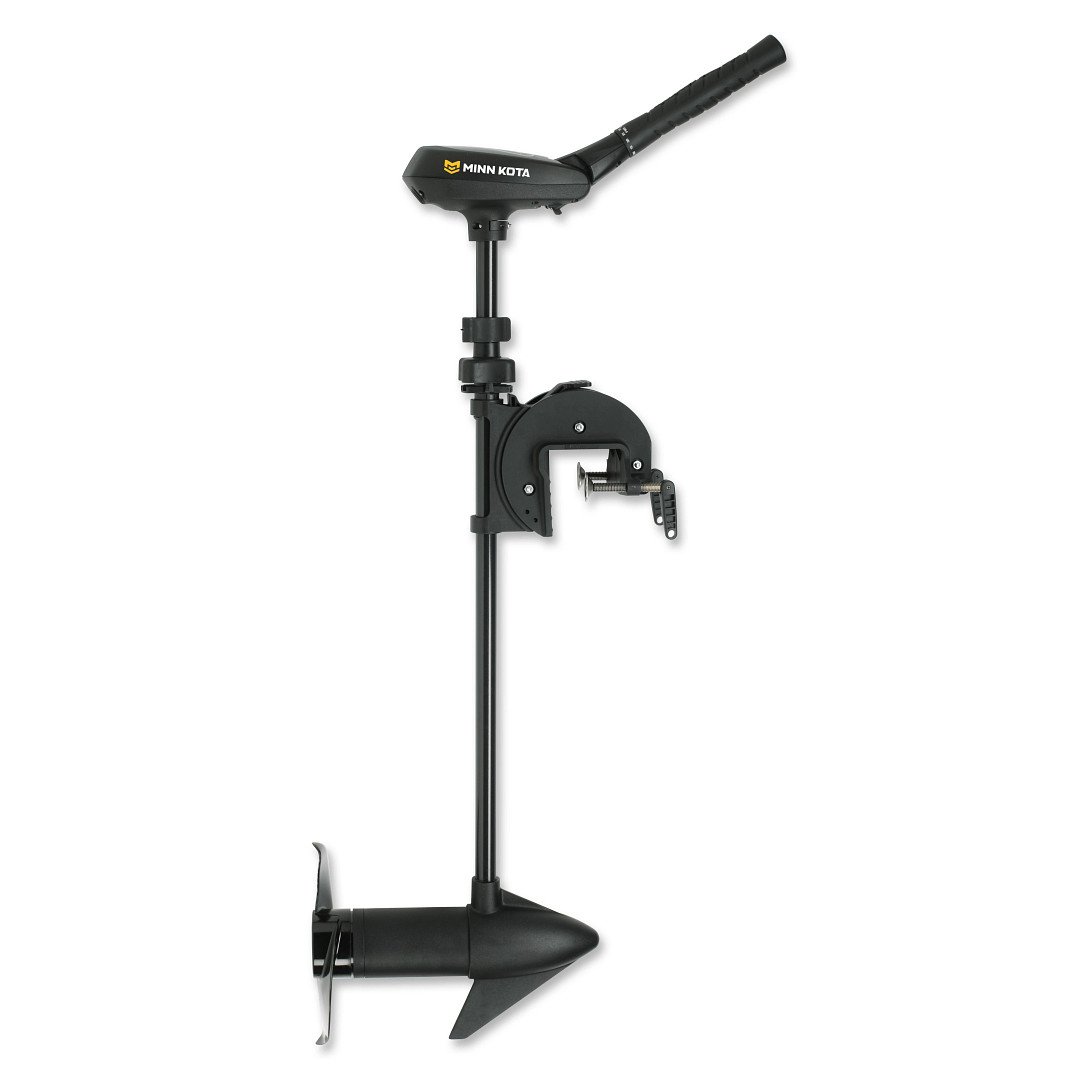

Minn Kota Traxxis
-
Traxxis® is loaded with features that put your boat right where you need it, day in and day out. Versatile steering tension control. Easy One-Hand Stow. Quick depth adjustments. Traxxis never runs out of ways to keep you on the fish.
-
One-Hand Stow: Just pull up and forward to stow the motor with no buttons or release levers. Then when it’s time to go, use the easy-access thumb release to deploy Traxxis into any of ten different positions.
Tilt/Extend Tiller: Take command of your hand control trolling motor with this versatile tiller, which both tilts (up to 45°) and extends (up to 6"), and features a digital battery indicator on the head.
Digital Maximizer™: Provides up to 5 times longer run time on a single battery charge. These variable speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.
Quick-Cam Depth Adjuster: Change trim depths quickly, simply and securely. When you find your depth, this easy-to-use adjuster locks in tight to keep your trolling motor right where you want it.
Steering Tension Control: Lock in the exact steering tension you want with the innovative collar above Traxxis' mount. Keep it loose for effortless steering or tighten it down to keep Traxxis in place, allowing for true vertical stowing.
Push-to-Test Battery Meter: Press a button on the trolling motor head to get an instant status of battery life you have left.
Power Prop: For 3-1/4" motor diameters, this prop delivers extra power to push through heavy vegetation. Includes prop pin, nut and washer.
Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
NOTE: 80-lb thrust, 24-volt Traxxis motors feature larger metal transom bracket with fold away clamp knob.
-
Minn Kota PowerDrive
-
Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up to the launch ramp every day with big-time technology, trusted power and easy operation. And with a mount that's tough, sleek and built to take a beating, it's going to keep showing up day after day.
-
Deploy-Assist Lever: Get in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.
Side-To-Side/Electric Foot Pedal: Control speed, steering, and momentary and constant on/off with the PowerDrive foot pedal, which is waterproof and features an 18' cord. Note: the foot pedal is not included with i-Pilot models.
Push-to-Test Battery Meter: Press a button to get an instant "stage of charge" reading.
Digital Maximizer™: Provides up to 5 times longer run time on a single battery charge. These variable speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.
Weedless Wedge™ 2 Prop: With swept-back flared blades to power through anything without battery-draining chopping and hacking, the Weedless Wedge™ 2 is one of the most trusted props in fishing.
Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
What's Included: PowerDrive 55 lb. 54" motor, Corded Foot Pedal, MKP-32 Prop and Mounting Hardware
-
Minn Kota Terrova
-
What makes Terrova® so popular? Start with i-Pilot® GPS trolling system, including Spot-Lock®. 80 pounds of thrust and effortless Lift-Assist Design. All together, it's a trusted motor with huge innovations that doesn't quit. What's not to love? Select models now available with Built-In MEGA Down Imaging® Sonar.
-
Lift-Assist Design: A spring-loaded assembly on the Terrova mount makes stowing the trolling motor effortless, every time.
Stow/Deploy Lever: Press this lever on the mount and fall-away ramps will effortlessly slide your trolling motor into the water. And when you're ready to move, Lift-Assist helps the motor stow effortlessly.
i-Pilot GPS Trolling System: The most-trusted GPS system in fishing. i-Pilot uses GPS to control your trolling motor with incredible features that keep you on the fish. Set Spot-Locks, record paths, control speed and steering, and more. i-Pilot makes boat positioning and control automatic, and you can take command from its easy-to-read large LCD screen.
Spot-Lock with Jog: Spot-Lock will hold you in place with unparalleled GPS accuracy. Available on i-Pilot GPS system that is pre-installed, Spot-Lock gives you the power to stay right on top of any productive fishing spot, without touching your trolling motor. With the included heading sensor, you can use Jog to move your Spot-Lock location five feet in any direction. Activate Spot-Lock from the i-Pilot remote or Humminbird fish finder.
AutoPilot™: Automatically navigate your boat in any direction you choose. Just point the head of your trolling motor in the direction you want to travel, activate AutoPilot™, and your trolling motor will keep you on that heading automatically, even correcting for wind, waves and current.
Universal Sonar 2: Keeps your transducer and wiring completely concealed and protected, running everything through the trolling motor's shaft, with shielded connectors.
Electric Foot Pedal: Low-profile design offers two steering options: heel/toe pedal and left/right steering buttons. Includes Spot-Lock activation, rotary speed control dial, momentary/constant on toggle, AutoPilot on/off toggle and 18' cable with waterproof connector plug.
Push-to-Test Battery Meter: Press a button on the trolling motor head to get an instant status of battery life you have left.
Digital Maximizer™: Provides up to 5 times longer run time on a single battery charge. These variable speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.
Weedless Wedge™ 2 Prop: With swept-back flared blades to power through anything without battery-draining chopping and hacking, the Weedless Wedge™ 2 is one of the most trusted props in fishing.
Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
Mobile App Compatibility: Control i-Pilot directly from your Apple® or Android™ device with our mobile app. You get quick command of speed, steering, Spot-Lock and Advanced AutoPilot — plus the ability to update i-Pilot software.
What's included: Terrova 80 lb. 60" motor with Universal Sonar 2, i-Pilot Remote, Lanyard, Heading Sensor, Corded Foot Pedal, MKP-33 Prop and Mounting Hardware.
-
Get moving with one of these propulsion options! We offer Honda Marine gas outboards, ePropulsion electric outboards, and Minn Kota trolling motors in a variety of configurations. The 10 Series is rated for up to 10HP in a tiller steering configuration. The 12 Series is rated for up to 20HP and the 14 Series is rated for up to 40HP in either tiller or remote steer configurations. All models are light enough for trolling motor-only propulsion.
2.3HP Tiller
-
THE BEST THINGS COME IN SMALL PACKAGES.
And that’s especially true with Honda’s BF2.3, one of the world’s lightest four-stroke outboards. The BF2.3 is so light, it rivals many two-stroke 2HP engines and electric motors, without the battery!
But just because it’s lightweight doesn’t mean we cut back on the power. The BF2.3 features 15% more power over its predecessor. Plus we added a 12% larger internal gas tank, which provides for about one hour of operation at wide open throttle. It’s a technologically advanced design that gives you power and performance – without sacrificing portability.
-
LIGHTWEIGHT AND COMPACT
The BF2.3 is incredibly light and easy to transport. Weighing less than 30 pounds, it's the ideal engine for dinghys, car-toppers and other types of small boats.
EASY TO CARRY AND INSTALL
A front mounted carrying handle provides superior portability and ease of installation.
MORE POWER - WITHOUT SACRIFICING PORTABILITY
With 15% more horsepower over its predecessor, this ultra light weight powerhouse produces surprising speed and maneuverability.
CENTRIFUGAL CLUTCH - BETTER PERFORMANCE
The centrifugal clutch maintains a smooth idle and when advanced, automatically engages the prop above idle speed. It's like having a neutral position.
PRECISE THROTTLE CONTROL
A twist grip throttle allows for precise throttle control. The throttle tensioner minimizes driver fatigue.
360° SWIVEL STEERING - ADDED MANUEVERABILITY
Provides excellent maneuverability in tight areas as well as full thrust in reverse (at 180°).
CONVENIENT FOLD DOWN TILLER
The BF2.3's tiller folds up or down for easy stowing.
STEERING FRICTION ADJUSTMENT
Allows you to adjust steering tension for ease in maneuverability.
ADJUSTABLE TRIM
Four manual settings ensure proper trim angle for maximum performance.
EASY STARTING
The maintenance free transistor ignition offers high-energy output for quick and easy starts.
INTERNAL FUEL TANK - EASIER PORTABILITY
With 12% more capacity over its predecessor, the BF2.3 now runs up to 60 minutes at full throttle on a tank of fuel. The internal tank facilitates easy removal and portability as a single unit.
EASY MAINTENANCE
The BF2.3 offers a convenient oil fill and drain. A carburetor drain screw allows quick and easy draining of the carburetor's float bowl for extended storage periods.
SHEER AND COTTER PIN KEEPER
The self-contained keeper stores two extra sets of cotter and sheer pins close at hand, so you'll be prepared if and when you need them.
DUAL LOCKABLE TRANSOM CLAMPS
Provides extra security when mounted to the transom.
FORCED AIR COOLED ENGINE - NO WATER PUMP WORRIES
The air-cooled block eliminates concern over clogged water pumps and debris being sucked into the powerhead, as well as reducing maintenance.
4-FRONT CORROSION PROTECTION SYSTEM - FIGHTS THE ELEMENTS
A patented, "Double Sealed" multi-layered paint process, sacrificial anodes, stainless steel technology, and waterproof connectors enhance corrosion protection.
-
ENGINE BF2.3
Type 4-Stroke OHV, 1 Cylinder/2 Valves
Displacement 57.2 cc (3.49 cubic in)
Bore & Stroke 45 mm x 36 mm (1.8 x 1.4 in)
Full Throttle RPM Range 5,000-6,000 RPM
Rated Power 2.3HP (1.7 kW)
Cooling System Forced Air
Ignition System Transistorized
CARB Rating 3-STAR, ultra low emission
Fuel Unleaded 86 octane
Fuel Tank Capacity .29 US gal (1.1L)
Starting System Recoil
Exhaust Under Water, Above Propeller
Lubrication Oil Slinger System
Trim Range 4-Stage: 5°, 10°,15°, 20°
Tilt Range 75°
DRIVE BF2.3
Gear Ratio 2.42:1
Steering Angle 360° pivot
EQUIPMENT BF2.3
Propeller 3-Blade Plastic
Diameter x Pitch 7.25 x 4.75 inches
DIMENSIONS BF2.3
Overall Width 285 mm / 11.2 in
TRANSOM HEIGHT BF2.3
S Type 418 mm / 16.5 in
L Type 571 mm / 22.5 in
DRY WEIGHT BF2.3
S-Type 13 kg / 29.5 lbs
L-Type 14 kg / 31 lbs
5HP Tiller
-
QUIET, DEPENDABLE, LIGHTWEIGHT.
Which is exactly what you want in a portable outboard. The BF5 is incredibly lightweight and compact. It’s easy to transport and ideal for small tenders, and jon boats.
And with features designed to make your boat ride smooth, quiet, and Honda dependable, you’ll be ready to enjoy a day on the water for years to come.
-
LIGHTWEIGHT AND COMPACT
The BF5's lightweight, compact design makes it perfect for small tenders, sailboats, jon boats, and inflatables. Weighing in at only 60 pounds, this motor is easy to transport.
EASY TO CARRY AND INSTALL
Enlarged carrying handles provides superior portability and ease of installation.
CONVENIENT FOLDING TILLER HANDLE
The tiller handle’s compact design allows for easy transportation and storage. Fold it either up or down as you prefer.
TWIST GRIP THROTTLE - MORE COMFORTABLE TO USE
Allows for precise throttle control. A unique throttle tensioner minimizes driver fatigue.
F-N-R GEARSHIFT
The BF5 features full forward, neutral, and reverse shifting. A safety lockout system allows the engine to be started in neutral gear only.
SHALLOW WATER DRIVE
An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage.
QUIETEST IN ITS CLASS
The BF5 lead its class in noise reduction from low to high speed.
LOW VIBRATION FOR A COMFORTABLE RIDE
Honda's exclusive design optimizes the isolation mounts to minimize the transfer of vibration to both the tiller handle and the transom. The custom rubber motor mounts absorb vibration, resulting in a motor with among the lowest handle vibration in its class.
LARGE DISPLACEMENT ENGINE FOR MORE POWER
Water-cooled, single cylinder design for better low- to mid-range power.
BEST IN CLASS RUN TIME
The large capacity 1.5 L internal fuel tank provides enough fuel for over 40 minutes of wide open throttle operation. Need more run time? The BF5 offers an external fuel tank connection.
6 AMP CHARGING SYSTEM AVAILABLE
An optional 6 amp charging system helps keep accessories and electronics charged.
EASY STARTING
You'll be impressed with how easy it is to start the BF5. The decompression mechanism opens the exhaust valve during the starting process. This reduces the amount of force needed to start the motor. Starting is easy, every time.
ONE-PUSH STOP SWITCH
The one-push stop switch makes it just as easy to shut off the motor. Pressing the stop button once safely shuts off the motor without it re-starting.
4-FRONT CORROSION PROTECTION SYSTEM - FIGHTS THE ELEMENTS
A patented, "Double Sealed" multi-layered paint process, sacrificial anodes, stainless steel technology, and waterproof connectors all enhance corrosion protection.
OIL ALERT PROTECTS YOUR ENGINE
A Low Oil Alert combined with an RPM reduction feature protect the engine from severe damage if the oil reaches a low pressure.
-
ENGINE BF5
Type 4-Stroke OHV, 1 Cylinder/2 Valves
Displacement 127 cc (7.8 cubic in)
Bore & Stroke 60 mm x 45 mm (2.4 x 1.8 in)
Full Throttle RPM Range 4,500-5,500 RPM
Rated Power 5 HP @ 5,500 RPM
Cooling System Water Cooled
Fuel Delivery 1 Carburetor
Internal Fuel Tank Capacity 1.5L (.39 gal.)
Ignition System Digital CDI
Starting System Recoil
Exhaust Under Water, Above Propeller
Lubrication Wet Sump
Trim Range 5-Stage 5°-9°-13°-17°-21°
Tilt Range 70°
DRIVE BF5
Gear Ratio 2.08:1
Gear Shift F-N-R
EQUIPMENT BF5
Alternator Opt. 6-Amp
Propeller 3-Blade Aluminum
Diameter x Pitch 7? x 6¾ inches
Available Optional Propellers 3
Oil Pressure Alert Standard
Low Oil Pressure RPM Reduction Standard
Rev-Limiter Standard
External Fuel Tank Connector Standard
Decompression Mechanism Standard
One-Touch Stop Button Standard
DIMENSIONS BF5
Overall Width 347 mm/13.66 in.
TRANSOM HEIGHT BF5
S Type 434 mm/15 in.
L Type 561 mm/20 in.
DRY WEIGHT BF5
S-Type 27 kg/60 lb.
L-Type 27.5 kg/60.6 lb.
9.9HP Tiller or Remote
-
PORTABLE, FUEL EFFICIENT, AND POWERFUL.
The BF9.9 offers more of what you want. More battery charging power. Easier to use features. Quieter performance. Dependable performance in a portable package. Better reliability.
Add in the optional Power Thrust design, and you’ve got an even more powerful and world-known Honda four-stroke motor, with 60% more thrust in reverse and 15% more in forward.
-
PGM IGNITION
A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall performance.
SHALLOW WATER DRIVE
An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage.
POWER TILT AVAILABLE
Conveniently allows user to tilt the unit out of the water. At low speeds acts like a power shallow-water-drive device, permitting access to the shallow water areas.
BETTER PERFORMANCE FOR HEAVY LOADS
The BF9.9 is available with an optional Power Thrust design (BFP models). The 10" x 7 5/8" Power Thrust 4-blade propeller creates 60% more thrust in reverse and 15% more in forward. The result? Improved maneuverability and performance.
REVERSE EXHAUST RELIEF FOR INCREASED MANUEVERABILITY
The exhaust relief feature creates more power in reverse by minimizing cavitation around the propeller blades. The exhaust relief is located above the cavitation plate, allowing the prop to run in clean, exhaust-free water.
ENGINE ALERT SYSTEM - KEEPS YOU INFORMED
The integrated warning system protects the engine from severe damage due to low oil, over-revving and overheating.
4-FRONT CORROSION PROTECTION SYSTEM - FIGHTS THE ELEMENTS
A patented, "Double Sealed" multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
EASY ONE HAND STARTING
Working together, a built-in decompression release and digital CDI system set the ignition timing to zero degrees during start-up. This greatly reduces the effort required to pull-start the engine by hand.
AUTO START ENRICHMENT - EASY STARTS
Auto Start Enrichment acts as an automatic choke. It automatically adjusts the air/fuel mixture for quick, easy starting and warm-up.
LIGHTWEIGHT ROUNDED DESIGN
Easy to transport, BF9.9 is perfect for small boats, dinghies or auxiliary. The ergonomic design is rounded to avoid catching fishing line.
INTEGRATED CARRYING HANDLE - EASIER TRANSPORT
A integrated carrying handle makes transporting the engine a breeze. The convenient, foldaway carry handle is situated at the exact top/bottom balance point of the engine. This means the engine carries more easily in a level position.
BEST IN CLASS HIGH OUTPUT CHARGING
The BF9.9 provides 2 Amps at 1000 RPM and an amazing 12 amps at only 3000 RPM. This helps to maintain the battery charge or keep electronics going - even at trolling speeds.
PENDULUM MOUNT SYSTEM - SMOOTH OPERATION
Honda's exclusive triangulated rubber mount system absorbs vibration and provides unbelievably smooth operation.
CONVENIENT, UP FRONT TILLER CONTROLS
A convenient front-mounted shift lever allows fingertip shifting. The Twist Grip Throttle & Tensioner minimize driver fatigue.
LONGER TILLER HANDLE - BETTER CONTROL
A convenient longer tiller handle improves control and reduced steering effort. The extended handle is made of a lightweight composite, increasing its durability while decreasing the motor's weight.
EZ STEER FRICTION CONTROL
A unique lever design allows you to precisely adjust steering tension for improved control and comfort.
-
ENGINE BF9.9
Type 4-Stroke SOHC 2 Cylinder/4 Valves
Displacement 222 cc (13.5 cubic inches)
Bore & Stroke 58 mm x 42 mm (2.3 x 1.7 in)
Full Throttle RPM Range 5,000-6,000 RPM
Rated Power 9.9 HP @ 5,500 RPM
Cooling System Water Cooled
Fuel Delivery 1 Carburetor
Ignition System PGM-IG
Starting System Electric/Recoil
Exhaust Through Hub
Lubrication Wet Sump
Trim Range 5 Stage 4°-8°-12°-16°-20°
Tilt Range 72°
DRIVE BF9.9
Gear Ratio 2.33:1
Gear Shift F-N-R
EQUIPMENT BF9.9
Alternator with voltage regulator (Electric Start) 12-Amp (148 watt)
Alternator with voltage regulator (Manual Start) 6-Amp (76 watt)
Propeller 4-Blade Aluminum
Diameter x Pitch, Standard 9¼ x 8 inches
Diameter x Pitch, Power Thrust 10 x 6.5 inches
Power Tilt Available
Power Trim & Tilt NA
Gas Assisted Tilt NA
Oil Pressure Alert Standard
Temperature Alert Standard
Rev-Limiter Standard
DIMENSIONS BF9.9
Overall Width 345 mm/13.6 inches
TRANSOM HEIGHT BF9.9
S Type 381 mm/15 inches
L Type 508 mm/20 inches
X Type 635 mm/25 inches
DRY WEIGHT BF9.9
S-Type 42 kg/92 lbs.
L-Type 44 kg/98 lbs.
X-Type 48 kg/107 lbs.
15HP Tiller or Remote
-
A PORTABLE POWERHOUSE.
The BF15 is as convenient as you can get. At just 104 pounds, it is among the lightest in it’s class. Yet it’s all Honda DNA: quiet, reliable, fuel efficient, and loaded with features.
Like the highest output charging system in their class, giving you plenty of power for all your electronics, even when trolling.
Or large displacement for a powerful performance. Choose the BFP Power Thrust design for even more boost, with 60% more thrust in reverse and 15% more in forward.
-
LARGE DISPLACEMENT - BETTER PERFORMANCE
At 21.4 cubic inches, the BF15 has one of the largest displacements in its class. Along with the long-stroke design, this provides optimum torque throughout the RPM range.
PGM IGNITION
A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall performance.
SHALLOW WATER DRIVE
An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage.
3 STAGE CARBURETION - BETTER FUEL ECONOMY
Conventional 2-circuit carburetors go directly from a lean mixture at idle to a rich setting at full throttle. The BF15 adds a third stage for better economy and smoother operation.
POWER TILT AVAILABLE
Conveniently allows user to tilt the unit out of the water. At low speeds acts like a power shallow-water-drive device, permitting access to the shallow water areas.
OPTIONAL POWER THRUST DESIGN - BETTER PERFORMANCE FOR HEAVY LOADS
The BF15 is available with an optional Power Thrust design (BFP models). The 10" x 7 5/8" Power Thrust 4-blade propeller creates 60% more thrust in reverse and 15% more in forward. The result? Improved maneuverability and performance.
REVERSE EXHAUST RELIEF FOR INCREASED MANUEVERABILITY
The exhaust relief feature creates more power in reverse by minimizing cavitation around the propeller blades. The exhaust relief is located above the cavitation plate, allowing the prop to run in clean, exhaust-free water.
ENGINE ALERT SYSTEM - KEEPS YOU INFORMED
The integrated warning system protects the engine from severe damage due to low oil, over-revving and overheating.
4-FRONT CORROSION PROTECTION SYSTEM - FIGHTS THE ELEMENTS
A patented, "Double Sealed" multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
EASY ONE HAND STARTING
A built-in decompression release and digital CDI system set the BF15’s ignition timing. This reduces the effort required to pull-start the engine by hand by 40%!
AUTO START ENRICHMENT - EASY STARTS
Auto Start Enrichment acts as an automatic choke. Just like a fuel injection system, it automatically adjusts the air/fuel mixture for quick, easy starting and warm-up.
LIGHTWEIGHT DESIGN
The lightest 4-stroke model in their class, the BF15 is easy to transport and convenient to mount.
INTEGRATED CARRYING HANDLE - EASIER TRANSPORT
A integrated carrying handle makes transporting the engine a breeze. The convenient, foldaway carry handle is situated at the exact top/bottom balance point of the engine. This means the engine carries more easily in a level position.
HIGH OUTPUT CHARGING
The BF15 has the largest alternator in their class. These motors generate 12 Amps at only 3000 RPM. This helps to maintain battery charge and keep electronics running at trolling speeds.
PENDULUM MOUNT SYSTEM - SMOOTH OPERATION
Honda's exclusive triangulated rubber mount system absorbs vibration and provides unbelievably smooth operation.
CONVENIENT, UP FRONT TILLER CONTROLS
A convenient front-mounted shift lever allows fingertip shifting. The Twist Grip Throttle & Tensioner minimize driver fatigue.
LONGER TILLER HANDLE - BETTER CONTROL
A convenient longer tiller handle improves control and reduced steering effort. The extended handle is made of a lightweight composite, increasing its durability while decreasing the motor's weight.
EZ STEER FRICTION CONTROL
A unique lever design allows you to precisely adjust steering tension for improved control and comfort.
-
ENGINE BF15
Type 4-Stroke SOHC 2 Cylinder/4 Valves
Displacement 350 cc (21.4 cubic inches)
Bore & Stroke 59 mm x 64 mm (2.3 x 2.5 inches)
Full Throttle RPM Range 4,500-5,500 RPM
Rated Power 15 HP @ 5,000 RPM
Cooling System Water Cooled
Fuel Delivery 1 Carburetor
Ignition System PGM-IG
Starting System Electric/Recoil
Exhaust Through Hub
Lubrication Wet Sump
Trim Range 4 Stage 8°-12°-16°-20°
Tilt Range 72°
DRIVE BF15
Gear Ratio 2.08:1
Gear Shift F-N-R
EQUIPMENT BF15
Alternator with voltage regulator (Electric Start) 12-Amp (148 watt)
Alternator with voltage regulator (Manual Start) 6-Amp (76 watt)
Propeller 4-Blade Aluminum
Diameter x Pitch, Standard 9¼ x 10 inches
Diameter x Pitch, Power Thrust 10 x 7? inches
Power Tilt Available
Oil Pressure Alert Standard
Temperature Alert Standard
Rev-Limiter Standard
DIMENSIONS BF15
Overall Width 350 mm/13.8 inches
TRANSOM HEIGHT BF15
S Type 381 mm/15 inches
L Type 508 mm/20 inches
X Type 635 mm/25 inches
DRY WEIGHT BF15
S-Type 47 kg/104 lbs.
L-Type 50 kg/110 lbs.
X-Type 52 kg/115 lbs.
20HP Tiller or Remote
-
A PORTABLE POWERHOUSE.
The BF20 is as convenient as you can get. At just 104 pounds, they are among the lightest in their class. Yet they‘re all Honda DNA: quiet, reliable, fuel efficient, and loaded with features.
Like the highest output charging system in their class, giving you plenty of power for all your electronics, even when trolling.
Or large displacement for a powerful performance. Choose the BFP Power Thrust design for even more boost, with 60% more thrust in reverse and 15% more in forward.
-
LARGE DISPLACEMENT - BETTER PERFORMANCE
At 21.4 cubic inches, the BF20 has one of the largest displacements in its class. Along with the long-stroke design, this provides optimum torque throughout the RPM range.
PGM IGNITION
A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall performance.
SHALLOW WATER DRIVE
An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage.
3 STAGE CARBURETION - BETTER FUEL ECONOMY
Conventional 2-circuit carburetors go directly from a lean mixture at idle to a rich setting at full throttle. The BF20 adds a third stage for better economy and smoother operation.
POWER TILT AVAILABLE
Conveniently allows user to tilt the unit out of the water. At low speeds acts like a power shallow-water-drive device, permitting access to the shallow water areas.
OPTIONAL POWER THRUST DESIGN - BETTER PERFORMANCE FOR HEAVY LOADS
The BF20 is available with an optional Power Thrust design (BFP models). The 10" x 7 5/8" Power Thrust 4-blade propeller creates 60% more thrust in reverse and 15% more in forward. The result? Improved maneuverability and performance.
REVERSE EXHAUST RELIEF FOR INCREASED MANUEVERABILITY
The exhaust relief feature creates more power in reverse by minimizing cavitation around the propeller blades. The exhaust relief is located above the cavitation plate, allowing the prop to run in clean, exhaust-free water.
ENGINE ALERT SYSTEM - KEEPS YOU INFORMED
The integrated warning system protects the engine from severe damage due to low oil, over-revving and overheating.
4-FRONT CORROSION PROTECTION SYSTEM - FIGHTS THE ELEMENTS
A patented, "Double Sealed" multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
EASY ONE HAND STARTING
A built-in decompression release and digital CDI system set the BF20’s ignition timing. This reduces the effort required to pull-start the engine by hand by 40%!
AUTO START ENRICHMENT - EASY STARTS
Auto Start Enrichment acts as an automatic choke. Just like a fuel injection system, it automatically adjusts the air/fuel mixture for quick, easy starting and warm-up.
LIGHTWEIGHT DESIGN
The lightest 4-stroke model in their class, the BF20 is easy to transport and convenient to mount.
INTEGRATED CARRYING HANDLE - EASIER TRANSPORT
A integrated carrying handle makes transporting the engine a breeze. The convenient, foldaway carry handle is situated at the exact top/bottom balance point of the engine. This means the engine carries more easily in a level position.
HIGH OUTPUT CHARGING
The BF20 has the largest alternator in their class. These motors generate 12 Amps at only 3000 RPM. This helps to maintain battery charge and keep electronics running at trolling speeds.
PENDULUM MOUNT SYSTEM - SMOOTH OPERATION
Honda's exclusive triangulated rubber mount system absorbs vibration and provides unbelievably smooth operation.
CONVENIENT, UP FRONT TILLER CONTROLS
A convenient front-mounted shift lever allows fingertip shifting. The Twist Grip Throttle & Tensioner minimize driver fatigue.
LONGER TILLER HANDLE - BETTER CONTROL
A convenient longer tiller handle improves control and reduced steering effort. The extended handle is made of a lightweight composite, increasing its durability while decreasing the motor's weight.
EZ STEER FRICTION CONTROL
A unique lever design allows you to precisely adjust steering tension for improved control and comfort.
-
ENGINE BF15 BF20
Type 4-Stroke SOHC 2 Cylinder/4 Valves
Displacement 350 cc (21.5 cubic inches)
Bore & Stroke 59 mm x 64 mm (2.3 x 2.5 inches)
Full Throttle RPM Range 5,000-6,000 RPM
Rated Power 20 HP @ 5,500 RPM
Cooling System Water Cooled
Fuel Delivery 1 Carburetor
Ignition System PGM-IG
Starting System Electric/Recoil
Exhaust Through Hub
Lubrication Wet Sump
Trim Range 4 Stage 8°-12°-16°-20°
Tilt Range 72°
DRIVE BF20
Gear Ratio 2.08:1
Gear Shift F-N-R
EQUIPMENT BF20
Alternator with voltage regulator (Electric Start) 12-Amp (151 watt)
Alternator with voltage regulator (Manual Start) 6-Amp (76 watt)
Propeller 4-Blade Aluminum
Diameter x Pitch, Standard 9¼ x 10 inches
Diameter x Pitch, Power Thrust 10 x 7? inches
Power Tilt Available
Oil Pressure Alert Standard
Temperature Alert Standard
Rev-Limiter Standard
DIMENSIONS BF20
Overall Width 350 mm/13.8 inches
TRANSOM HEIGHT BF20
S Type 381 mm/15 inches
L Type 508 mm/20 inches
X Type NA
DRY WEIGHT BF20
S-Type 47 kg/104 lbs.
L-Type 50 kg/110 lbs.
X-Type NA
30HP Remote
-
PACKED WITH DEPENDABLE POWER.
For mid and smaller horsepower needs, there’s plenty of punch in the Honda BF30. But it’s power you’ll feel and never hear. That’s because all Hondas are whisper quiet. So extraordinarily quiet, we don’t have to put extra dampening insulation in the cowling like most manufacturers do.
Instead we pack ‘em full of features. Like a Center Mount Tiller with up-front controls. The 3 to 3 Induction system that provides smooth, quiet operation. And Autostart Enrichment, which makes starting a breeze.
-
INCREASED DISPLACEMENT FOR MORE POWER
The BF30 is among the largest displacement in it’s class, at 552 cc (33.7 cubic inches). This provides more torque in midrange operation.
3 TO 3 INDUCTION
3 to 3 induction provides smooth, quiet operation, along with instant throttle response and performance. A compact 3-cylinder, 3-carburetor design utilizes one carburetor per cylinder. This design is more responsive than competitive throttle bodies with long intake runners.
PGM IGNITION
A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall performance.
FORCED AIR VENTILATION
The unique air intake on the top of the cowl allows cooler air to enter and warmer air to escape. The ventilation system reduces under-the-hood operating temperature, improving performance and long-term durability of the electrical components.
3 INLET COOLING
Provides plenty of water to maintain optimum engine temperature in all conditions.
HONDA QUALITY
Our outboards share many technologies and components used in Honda vehicles, with all the benefits of years of proven Honda engineering, precision manufacturing and reliability.
ENGINE ALERT SYSTEM
The Engine Alert System uses visual, audio and RPM reduction circuits to alert the operator of over-heating, low oil PSI and over-revving.
CORROSION RESISTANCE
Honda’s exclusive 4-Front Corrosion Protection System offers a patented, double-sealed multi-layered paint process.
EASY STARTING
Auto Start Enrichment acts as an automatic choke. It automatically adjusts the air/fuel mixture for quick, easy starting and warm-up.
HIGH OUTPUT CHARGING SYSTEM FOR MORE POWER
A rectifier/regulator is standard on both manual and electric-start models. On manual models, you have the convenience of 4 Amps to charge the battery, and on electric-start models, a high-output 10 Amp system.
EASY MAINTENANCE
Easy access side-mounted oil filter and oil fillers simplify maintenance, while "screw-type" valve adjusters reduce maintenance costs.
CONVENIENT CONTROLS
The center mounted, ergonomically designed tiller handle is longer for improved handling. Adjustments for throttle and steering friction allow easier control. Up front shift lever, PTT switch, and engine alert lamps provide added convenience.
FORWARD MOUNTED SHIFT LEVER
Provides easy access to the forward-mounted controls.
ATTRACTIVE OPTIONS
GAS ASSIST TILT
Acting much like a pressure strut on a car's trunk lid, the gas-filled cylinder makes it easy to tilt the engine for running in shallow water, or to raise it completely out of the water for protection.
POWER TRIM/TILT
Allows you to trim the unit for maximum performance and handling.
Trim Range: - 4° to +12°
Tilt Range: 64°
-
ENGINE BF30
Type 4-Stroke SOHC 3 Cylinder - 2 Valves/ Cyl.
Displacement 552 cc (33.7 cubic inches)
Bore & Stroke 61 mm x 63 mm (2.4 x 2.5 inches)
Full Throttle RPM Range 5,000-6,000 RPM
Rated Power 30 HP @ 6,000 RPM
Cooling System Water Cooled
Fuel Delivery 3 Carburetors
Ignition System PGM-IG
Starting System Electric
Exhaust Through Hub
Lubrication Wet Sump
Trim Range -4° to +12°
Tilt Range 64°
DRIVE BF30
Gear Ratio 2.08:1
Gear Shift F-N-R
EQUIPMENT BF30
Alternator (Electric Start) 10-Amp (126 watt)
Propeller 3-Blade Aluminum
Diameter x Pitch 9 7/8 x 12 inches
Power Tilt NA
Power Trim & Tilt Available
Gas Assisted Tilt Available
Oil Pressure Alert Standard
Temperature Alert Standard
Rev-Limiter Standard
DIMENSIONS BF30
Overall Width 375 mm/14.8 inches
TRANSOM HEIGHT BF30
S Type 381 mm/15 inches
L Type 508 mm/20 inches
DRY WEIGHT BF30
S-Type 70.5 kg/155 lbs.
L-Type 72.5 kg/160 lbs.
40HP Remote
-
READY TO TAKE YOU TO GREAT PLACES. LIKE THE HEAD OF THE CLASS.
The BF40 is an outstanding combination of Honda’s legendary four-stroke engineering and our latest outboard innovations. The result? The lightest, most compact engines in their class. And because it’s from Honda, it’s loaded with unparalleled features and technology.
Like BLAST (Boosted Low Speed Torque) for vastly improved hole shots. Programmed Electronic Fuel Injection, for easy starts, instant throttle response, and overall better fuel economy. Lean Burn Control stretches your gas even further by allowing a leaner air-to-fuel mixture.
-
POWERFUL PERFORMANCE
INSTANT ACCELERATION
Honda’s exclusive BLAST system improves acceleration at low speeds. The result? Instant acceleration and improved hole shot.
HIGH PERFORMANCE GEARCASE
Designed to get you going faster, the BF40's gearcase reduces drag, greatly reduces hull porpoise and minimizes spray, increasing acceleration and top speed.
MIKUNI INTAKE SYSTEM
The lightweight Mikuni long tube intake track system helps build low end torque, improving performance.
LIGHTWEIGHT AND COMPACT
Because of Honda’s elegant design, the BF40 is among the lightest, most compact engines in their class. Perfect for aluminum boats, inflatables, skiffs and flats boats.
SUPERIOR FUEL EFFICIENCY
BEST IN CLASS FUEL EFFICIENCY
Lean Burn Control increases fuel efficiency by allowing combustion to operate on a leaner air/fuel mixture. At cruising speed, this engine runs on up to 20% less fuel* than others in its class.
PGM-FI
Multi-port Programmed Fuel Injection adds both easy starts and improved fuel efficiency - without sacrificing performance.
TOUGH CORROSION RESISTANCE
4-FRONT CORROSION PROTECTION SYSTEM
Honda’s exclusive 4-Front Corrosion Protection System offers a patented, double-sealed multi-layered paint process.
FRESH WATER FLUSHPORT
Fresh water flushport flushes debris and saltwater out of the engine.
LEGENDARY RELIABILITY
HONDA QUALITY
Our outboards share many technologies and components used in Honda vehicles, with all the benefits of years of proven Honda engineering, precision manufacturing and reliability.
ENGINE ALERT SYSTEM
The Engine Alert System uses visual, audio and RPM reduction circuits to alert the operator of over-heating, low oil PSI and over-revving.
EASY OWNERSHIP
ON-BOARD CONNECTIVITY
NMEA 2000 protocols allow engine data to be interfaced with on-board systems and systems displays, such as SONAR or GPS.
HIGH OUTPUT CHARGING FOR MORE USABLE POWER
The high output charging system features a 22 amp "On Demand" belt-driven alternator with 17 charging amps. This superior design enables the 40 and 50 to put out nearly twice as many charging amps as the competition’s.
EASY MAINTENANCE
Easy access side-mounted oil filter and oil fillers simplify maintenance, while "screw-type" valve adjusters reduce maintenance costs.
EASY ACCESS CONTROLS
The center mounted, ergonomically designed tiller handle is longer for improved handling. Adjustments for throttle and steering friction allow easier control. Up front shift lever, PTT switch, and engine alert lamps provide added convenience.
ATTRACTIVE OPTIONS
VARIABLE TROLLING SPEEDS
An optional switch allows for variable trolling speeds, ideal for fishermen.
POWER TRIM/TILT
Allows you to trim the unit for maximum performance and handling.
Trim Range: - 4° to +16°
Tilt Range: 63°
-
ENGINE BF40
Type 4-Stroke SOHC, 3 Cylinder, 2 Valves/Cyl.
Displacement 808 cc (49.4 cubic inches)
Bore & Stroke 70 mm x 70 mm (2.8 x 2.8 inches)
Full Throttle RPM Range 5,000-6,000 RPM
Rated Power 40 HP @ 5,500 RPM
Cooling System Water Cooled
Fuel Delivery Programmed Fuel Injection
Ignition System MicroComputer Programmed
Starting System Electric
Exhaust Through Hub
Lubrication Wet Sump
Trim Range -4° to +16°
Tilt Range 63°
DRIVE BF40
Gear Ratio 2.08:1
Gear Shift F-N-R
EQUIPMENT BF40
Alternator with voltage regulator 22-Amp (275 watt)
Battery Charging Power 17 Amps
Propeller Optional
Power Tilt NA
Power Trim & Tilt Available
Gas Assisted Tilt Available
Oil Pressure Alert Standard
Temperature Alert Standard
Rev-Limiter Standard
Speedometer Pickup Standard
DIMENSIONS BF40
Overall Width 372 mm/14.7 inches
TRANSOM HEIGHT BF40
L Type 508 mm/20 inches
X Type NA
DRY WEIGHT BF40
L-Type 97 kg/214 lbs.
X-Type NA
Get moving with one of these propulsion options! We offer Honda Marine gas outboards, ePropulsion electric outboards, and Minn Kota trolling motors in a variety of configurations. The 10 Series is rated for up to 10HP in a tiller steering configuration. The 12 Series is rated for up to 20HP and the 14 Series is rated for up to 40HP in either tiller or remote steer configurations. All models are light enough for trolling motor-only propulsion.

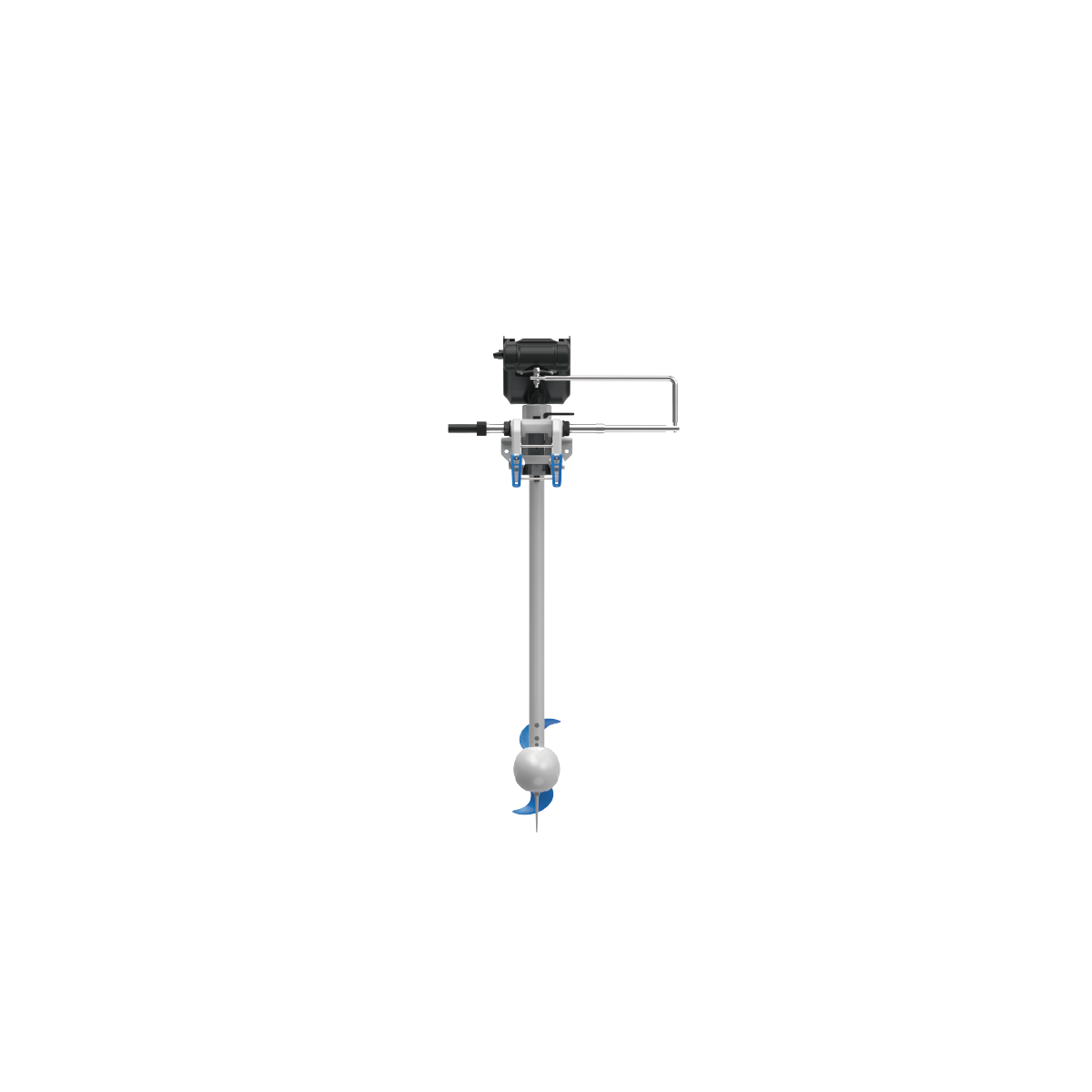

ePropulsion eLite Tiller
-
Introducing eLite
The ePropulsion eLite 500W electric outboard redefines your on-water experience with innovative features and commitment to sustainability. Designed to be the most compact and lightweight electric outboard in its class, it is an easy-to-use alternative to small internal combustion engines for enthusiasts worldwide. Perfectly blending efficiency and mobility, it represents a new era in clean, quiet, and eco-friendly marine propulsion.
-
Compact & Fully Integrated Space-Saving Design
14.7 lbs. total weight (excluding bracket)
Folding Tiller
Quick to pack and deploy your eLite
Digital Operation
With a digital display, you have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keeps you safe.
Stepless Throttle Changing
The throttle hand feel is clear, smooth and enjoyable.
Advanced Tiller Handle
Extendable and Adjustable Angle with an anti-slip grip.
Clamp Bracket Functionality
Quick release for motor on/off. Partial tilt at 36° for shallow water and full tilt at 75° for beach landings and storage.
USB-C output
To charge/power other devices.
-
Power 500W (1.5HP equivalent) 750W (in sport mode)
Battery Integrated 378Wh 25.2V Lithium-Ion
Battery Life 800 cycles at 80% DOD

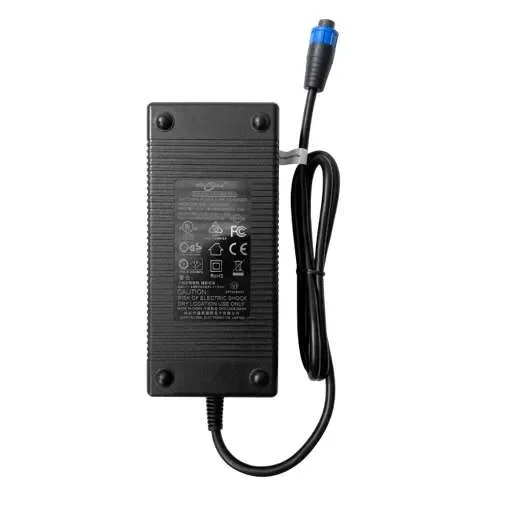

Charger 100-240V AC charger included (12V charger optional)
Rated RPM 1500-1700
Operating Temp -5 to 55 °C
Tilt and Trim 8°/17°/26°
Tilt Angle 75°
Shallow Water Mode Tilt Angle 36°
Steering Angle ±70°
Dimensions 11.7 × 3 × 35”
Motor Weight (no bracket) 6.7 kg / 14.7 lbs
Motor Weight (w/ bracket) 7.9 kg / 17.4 lbs
Adjustable Shaft Length 15.8 / 14.27 / 12.7 / 11.1”
Motor Brushless DC motor
Direct Drive Yes
Maintenance-Free Yes
ePropulsion Spirit 1.0 Plus
-
Introducing Spirit 1.0 Plus
Spirit 1.0 Plus is a portable 3HP electric outboard made for dinghies, fishing boats, sailboats and tenders. It features a 1276Wh large integrated lithium battery for long range. It’s nimble, lightweight, and clean power.
*Can upgrade battery to E Series battery for longer battery life.
-
Lightweight
The total weight is only 42 lbs, including the battery.
Folding Tiller
Quick to pack and deploy your Spirit
Digital Operation
With a digital display, you have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keeps you safe.
Stepless Throttle Changing
The throttle hand feel is clear, smooth and enjoyable.
Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boats.
-
Power 1 kW (3HP equivalent)
Input Voltage 39V – 60V
Standard Battery Spirit Battery Plus, 1276 Wh li-ion polymer
Motor Weight* 10.6 kg / 23.4 lbs
Battery Weight 8.7 kg / 19.2 lbs
Charing Time Standard charger: 8.5 Hrs; Fast charger: 3.5 Hrs
External Battery Yes, and E-Series Battery recommended
Propeller 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle 0°, 7°, 14°, 21° / 70°
Shaft Length Extra Short, Short, Long
Motor Brushless DC motor
Direct Drive Yes
Maintenance-Free Yes
ePropulsion Spirit 1.0 Evo
-
Introducing Spirit 1.0 Plus
Spirit 1.0 Evo is a portable 3HP electric outboard made for dinghies, fishing boats, sailboats and tenders. It features a 1276Wh large integrated lithium battery for long range. It’s nimble, lightweight, and clean power.
*Can upgrade battery to E Series battery for longer battery life.
-
Lightweight
The total weight is only 42 lbs, including the battery.
Hydrogeneration
Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. ePropulsion pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.
Digital Operation
With a digital display, you have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keeps you safe.
Stepless Throttle Changing
The throttle hand feel is clear, smooth and enjoyable.
Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boats.
-
Power 1 kW (3HP equivalent)
Standard Battery Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage 39V – 60V
Motor Weight* 10.6 kg / 23.4 lbs
Battery Weight 8.7 kg / 19.2 lbs
Standard Charging 8.5 Hrs
Fast Charging 3.5 Hrs
External Battery Yes, and E-Series Battery recommended
Propeller 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle 0°, 7°, 14°, 21° / 85°
Shaft Length Short, Long
Control Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration Yes
Motor Brushless DC motor
Direct Drive Yes
ePropulsion Navy 3.0
-
Introducing Navy
The Navy Series is the backbone of ePropulsion electric outboard motors. It provides efficient and clean power for aluminum fishing boats, dinghies, daysailers and cruising sailboats, suitable for saltwater and freshwater. Thanks to the direct-drive technology, the Navy electric outboard boat motor is quiet, maintenance-free, and reliable.
*Requires a minimum of one E60.
-
Lightweight
The total weight is only 42 lbs, including the battery.
Folding Tiller
Quick to pack and deploy your Spirit
Digital Operation
With a digital display, you have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keeps you safe.
Stepless Throttle Changing
The throttle hand feel is clear, smooth and enjoyable.
Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boats.
-
Power 3 kW (6HP equivalent)
Input voltage 39V – 60V
Recommended Battery ePropulsion E-Series Batteries. One E80 or two E40 minimum.
Motor Weight* 24.3 kg / 53.6 lbs
Propeller 10.2″ × 6.7″ 2-blade composite propeller
Trim / Tilt Angle 0°, 5°, 10°, 15° / 60°
Shaft Length Short, Long
Control Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration Yes
Motor Brushless DC motor
Direct Drive Yes
ePropulsion Navy 6.0
-
Introducing Navy
The Navy Series is the backbone of ePropulsion electric outboard motors. It provides efficient and clean power for aluminum fishing boats, dinghies, daysailers and cruising sailboats, suitable for saltwater and freshwater. Thanks to the direct-drive technology, the Navy electric outboard boat motor is quiet, maintenance-free, and reliable.
*Requires a minimum of one E163
-
Lightweight
The total weight is only 42 lbs, including the battery.
Folding Tiller
Quick to pack and deploy your Spirit
Digital Operation
With a digital display, you have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keeps you safe.
Stepless Throttle Changing
The throttle hand feel is clear, smooth and enjoyable.
Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boats.
-
Power 6 kW (9.9HP equivalent)
Input voltage 39 V – 60 V
Recommended Battery ePropulsion E-Series Batteries. One E175 or two E80 E Series batteries minimum.
Motor Weight* 36 kg / 79.4 lbs
Propeller 12.6″ × 10.8″ 3-blade composite propeller / 13.4″ × 8.5″ 3-blade composite propeller / 12.6″ × 8.7″ 3-blade aluminum propeller (optional)
Trim / Tilt Angle 0°, 5°, 10°, 15° / 60°
Shaft Length Short, Long
Control Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration Yes
Motor Brushless DC motor
Direct Drive Yes
ePropulsion E Series Batteries
-
Why Choose The E-Series LiFePO4 Battery
Maximum Safety
The intelligent battery management system (BMS) is applied to provide maximum safety for the users.
High Energy Density
3 times higher energy density and 70% less weight than lead-acid batteries.*
*Under equal capacity.
Long Life Cycle
3,000 cycles at 80% DOD, the E-Series lifepo4 batteries power your motors much longer than lead-acid batteries.*
*Under equal capacity.
Easy to Install
The connectors of E60/E163 can be installed with only ONE hand. No additional tool is required.
Fully Compatible with ePropulsion Motors
Data synced with ePropulsion motors to apply smart operation strategy.
-

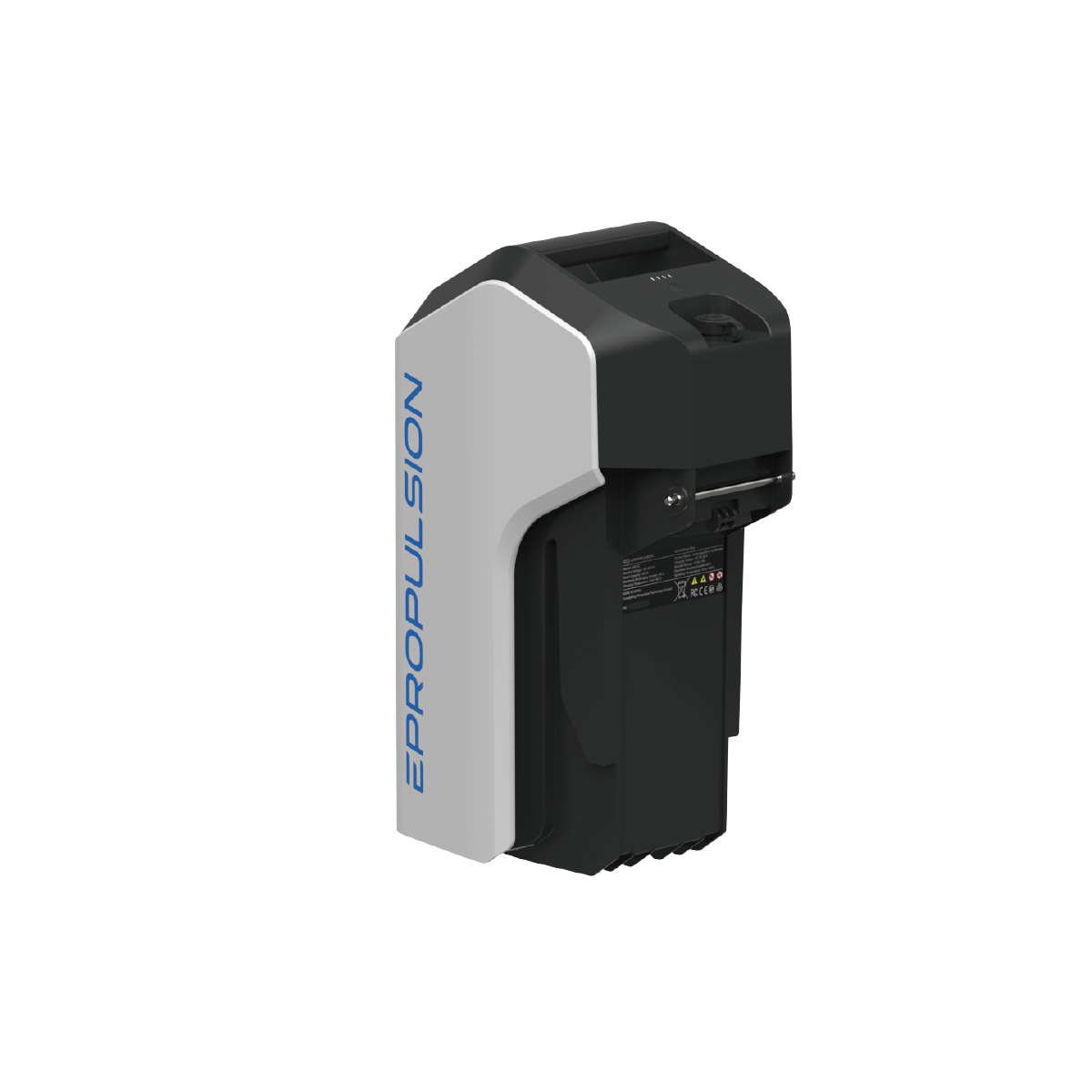

Spirit Battery Plus
Integrated design clips into Spirit motors.
Positive buoyancy allows the battery to float if dropped into the water.E60 E163
HD Screen
CAN communication port
Motor communication port
Power button
Vent valve
Built in lift handle -
